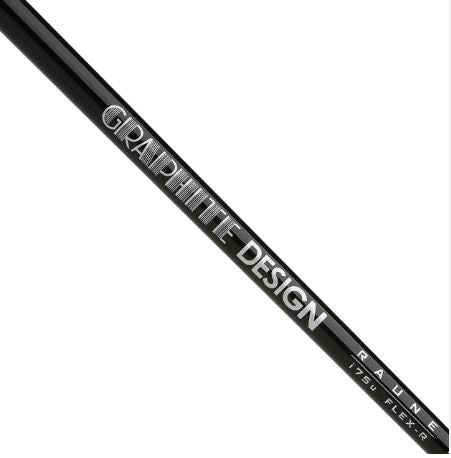

Graphite Design Raune Iron Shaft (0.355" Taper Tip)
Graphite Design Raune 105g Iron Shafts — .355″ Taper Tip
A firmer, faster-swinging graphite iron shaft built to length for a drop-in fit — available now at Grips4Less.
Overview
The Graphite Design Raune (pronounced “Raw-nay,” derived from the Japanese word for “Aim”) iron shaft is engineered to deliver a uniquely stable, controlled feel to golfers of every skill level. Each Raune shaft pairs a high-modulus carbon fiber core for stability with a pitch-fiber outer layer, fine-tuned for optimized stiffness and feedback through impact.
The Raune 105g is the firmest, fastest-swinging build in the family, offered in a .355″ taper tip design in both Stiff and X-Stiff flex. Unlike the unitized .370″ models, the 105g ships pre-cut to ten discrete finished lengths (39.0″ down to 35.5″), so it installs straight in with no tip trimming required — just butt-trim to your final club length.
Key Features
- High-modulus, aerospace-quality carbon fiber construction for exceptional stability
- Graphite Design proprietary MSI (Material Stiffness Integration) design philosophy
- Firm butt, mid, and tip sections for a stable, low-spin feel geared toward faster swing speeds
- .355″ taper tip — insert straight in, no tip trimming required
- Mid launch and mid spin for penetrating, consistent ball flight
- Ten pre-cut finished lengths per flex (39.0″–35.5″) for precise, length-specific fitting
Available Flexes
| Model | Flex | Tip OD | Torque Range | Kick Point | Launch | Spin | MSRP |
|---|---|---|---|---|---|---|---|
| Raune 105g | Stiff | .355″ Taper | 2.7°–3.3° | Mid | Mid | Mid | $140 |
| Raune 105g | X-Stiff | .355″ Taper | 2.7°–3.3° | Mid | Mid | Mid | $140 |
Bend Profile
| Shaft | Butt Section | Mid Section | Tip Section |
|---|---|---|---|
| Raune 105 | Firm | Firm | Firm |
Full Technical Specifications
Each flex is offered in ten finished lengths, letting a fitter select the exact length/weight/torque combination for a specific iron rather than tip-trimming a single raw shaft.
Stiff Flex
| Part Number | Length | Weight | Tip OD | Butt OD | Torque | Kick Point | Launch | Spin |
|---|---|---|---|---|---|---|---|---|
| IRA105-S3 | 39.0″ | 108g | .355″ Taper | .600″ | 3.3° | Mid | Mid | Mid |
| IRA105-S4 | 38.5″ | 108g | .355″ Taper | .600″ | 3.2° | Mid | Mid | Mid |
| IRA105-S5 | 38.0″ | 110g | .355″ Taper | .600″ | 3.1° | Mid | Mid | Mid |
| IRA105-S6 | 37.5″ | 110g | .355″ Taper | .600″ | 3.1° | Mid | Mid | Mid |
| IRA105-S7 | 37.0″ | 112g | .355″ Taper | .600″ | 2.9° | Mid | Mid | Mid |
| IRA105-S8 | 36.5″ | 112g | .355″ Taper | .600″ | 2.9° | Mid | Mid | Mid |
| IRA105-S9 | 36.0″ | 113g | .355″ Taper | .600″ | 2.8° | Mid | Mid | Mid |
| IRA105-S10 | 35.5″ | 114g | .355″ Taper | .600″ | 2.7° | Mid | Mid | Mid |
X-Stiff Flex
| Part Number | Length | Weight | Tip OD | Butt OD | Torque | Kick Point | Launch | Spin |
|---|---|---|---|---|---|---|---|---|
| IRA105-X3 | 39.0″ | 110g | .355″ Taper | .602″ | 3.3° | Mid | Mid | Mid |
| IRA105-X4 | 38.5″ | 110g | .355″ Taper | .602″ | 3.2° | Mid | Mid | Mid |
| IRA105-X5 | 38.0″ | 110g | .355″ Taper | .602″ | 3.1° | Mid | Mid | Mid |
| IRA105-X6 | 37.5″ | 110g | .355″ Taper | .602″ | 3.1° | Mid | Mid | Mid |
| IRA105-X7 | 37.0″ | 114g | .355″ Taper | .602″ | 2.9° | Mid | Mid | Mid |
| IRA105-X8 | 36.5″ | 114g | .355″ Taper | .602″ | 2.9° | Mid | Mid | Mid |
| IRA105-X9 | 36.0″ | 114g | .355″ Taper | .602″ | 2.8° | Mid | Mid | Mid |
| IRA105-X10 | 35.5″ | 115g | .355″ Taper | .602″ | 2.7° | Mid | Mid | Mid |
Tip Trimming
Note: The Raune 105g is a .355″ taper tip shaft. Do not tip trim. Insert straight in and butt-trim only to reach the desired finished club length.
Fitting Guide
Not sure which flex is right for you? Use the table below as a starting point, based on driver swing speed, then have a Grips4Less club builder confirm the fit for your swing.
| Driver Swing Speed | Recommended Flex |
|---|---|
| 96–105 MPH | S Flex (Stiff) |
| 105+ MPH | X Flex (X-Stiff) |
